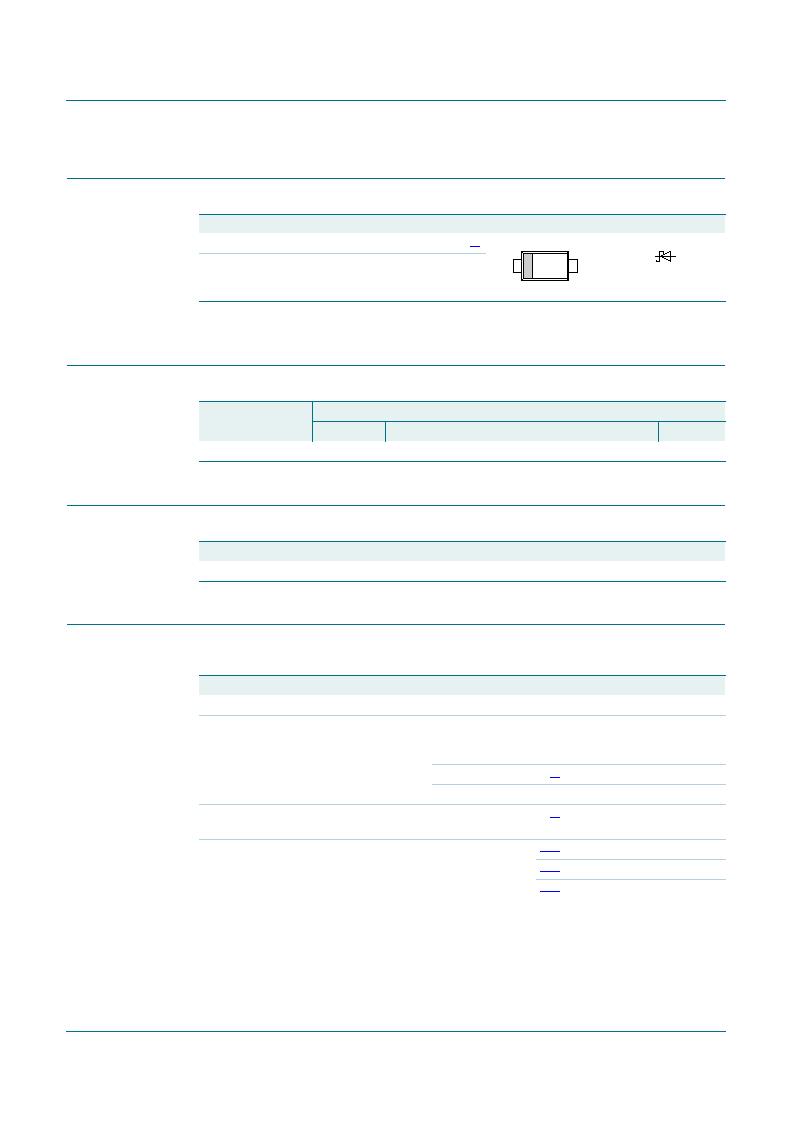

 PMEG3010BER_1 ? NXP B.V. 2009. All rights reserved. Product data sheet Rev. 01 — 20 April 2009 2 of 13 NXP Semiconductors PMEG3010BER 1 A low VF MEGA Schottky barrier recti?er 2. Pinning information [1] The marking bar indicates the cathode. 3. Ordering information 4. Marking 5. Limiting values Table 2. Pinning Pin Description Simpli?ed outline Graphic symbol 1 cathode [1] 2 anode 2 1 sym001 12 Table 3. Ordering information Type number Package Name Description Version PMEG3010BER - plastic surface-mounted package; 2 leads SOD123W Table 4. Marking codes Type number Marking code PMEG3010BER B8 Table 5. Limiting values In accordance with the Absolute Maximum Rating System (IEC 60134). Symbol Parameter Conditions Min Max Unit VR reverse voltage Tj=25°C - 30 V IF(AV) average forward current square wave; δ = 0.5; f=20kHz Tamb ≤ 120 °C [1] -1A Tsp ≤ 140 °C-1A IFSM non-repetitive peak forward current square wave; tp =8ms [2] -50A Ptot total power dissipation Tamb ≤ 25 °C [3][4] - 0.57 W [3][5] - 0.95 W [3][1] - 1.8 W |
